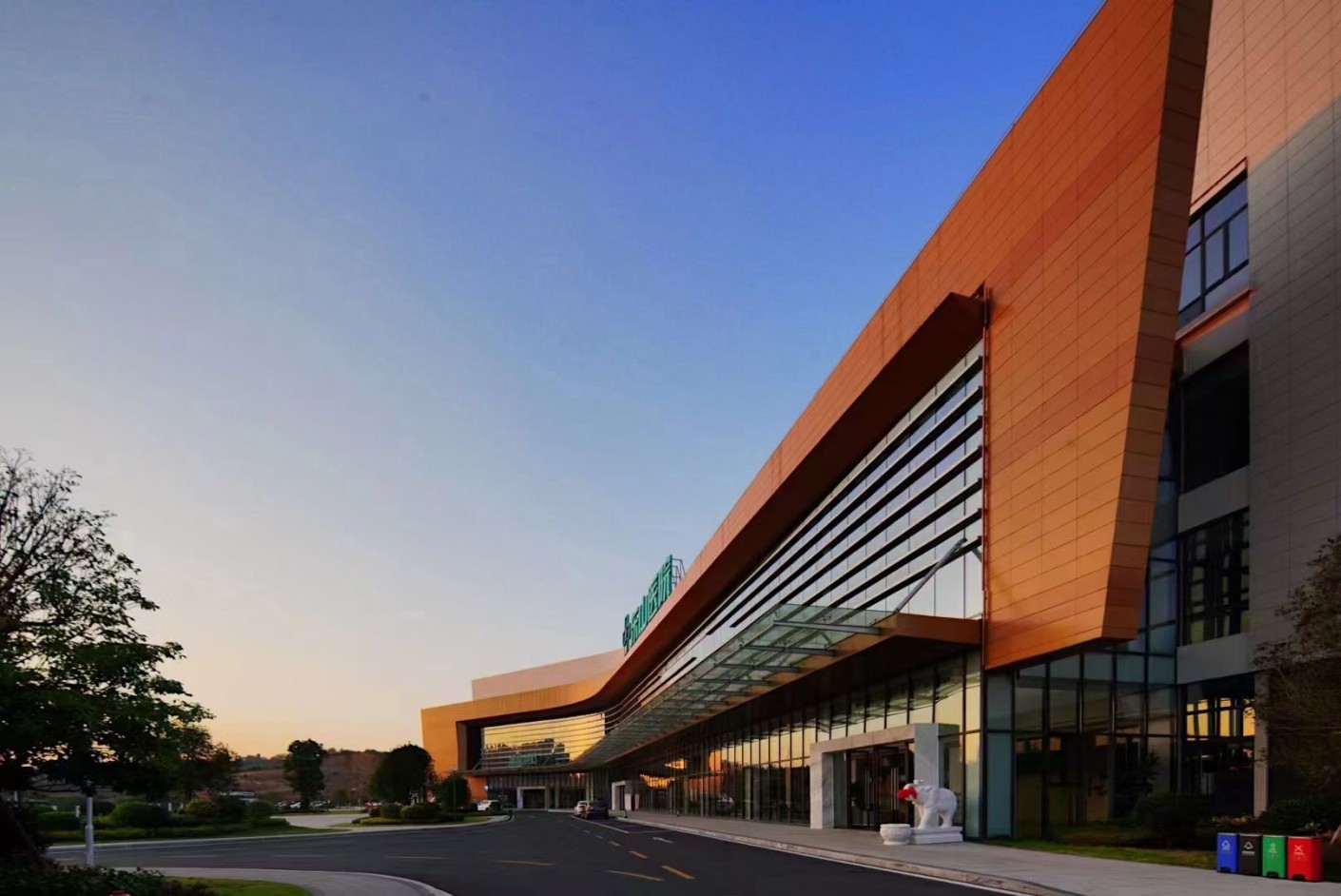

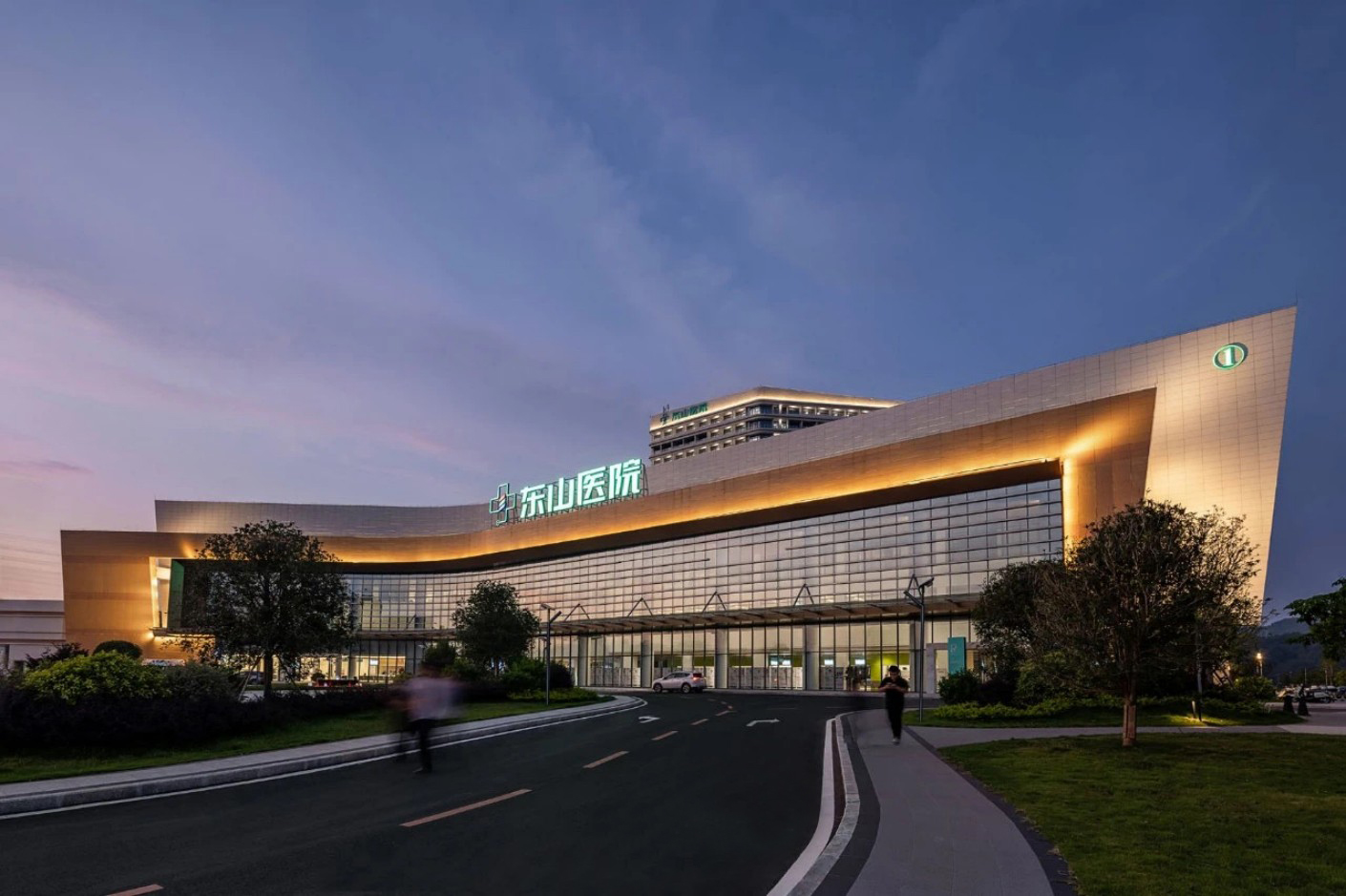

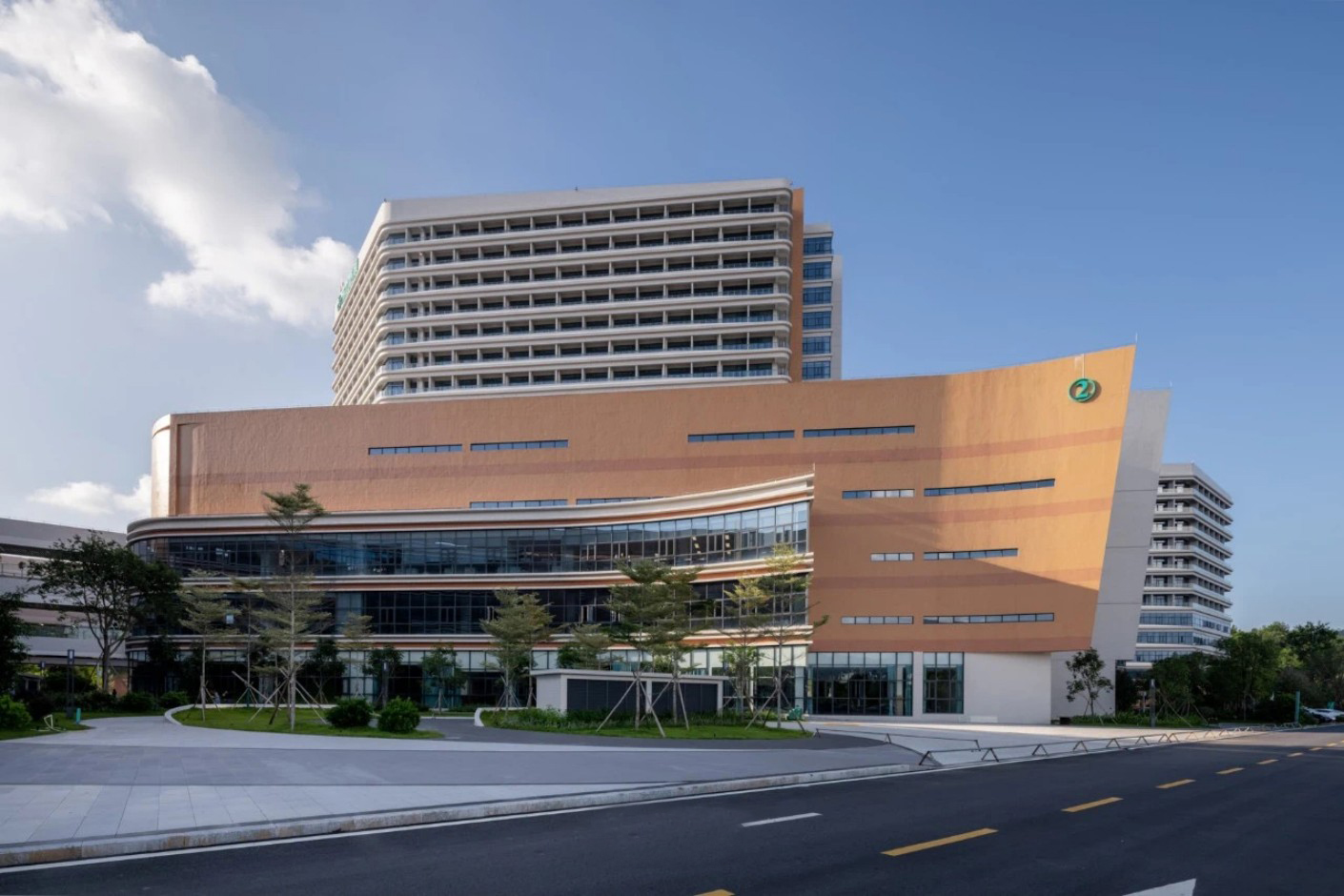

Meizhou Dongshan Hospital Curtain Wall & Ceiling Solutions Won The Luban Prize
As the dedicated supplier of architectural façade and interior ceiling systems for Meizhou Dongshan Hospital, we provide precision-engineered aluminum solutions tailored to meet the stringent demands of modern healthcare facilities, blending durability, hygiene, and aesthetic sophistication.
Product: Exterior Aluminum Single Panels
Material: 2.5–3.0mm thick AA3105 aluminum alloy (Customizable dimensions up to 6000mm x 2000mm)
Surface Treatment:
PVDF Coating (Anti-fingerprint, UV-resistant finishes in RAL colors)
Antimicrobial Powder Coating (ISO 22196-certified for 99.9% bacterial inhibition)
Perforation Options: Laser-cut patterns (3–10mm holes, 20–50% open ratio) for ventilation and daylight optimization
Key Features:
Seamless interlocking system for weatherproof performance (IP66 rated)
A2 fire-rated and corrosion-resistant for coastal/urban environments
Lightweight yet robust structure (load capacity up to 3.5 kN/m²)

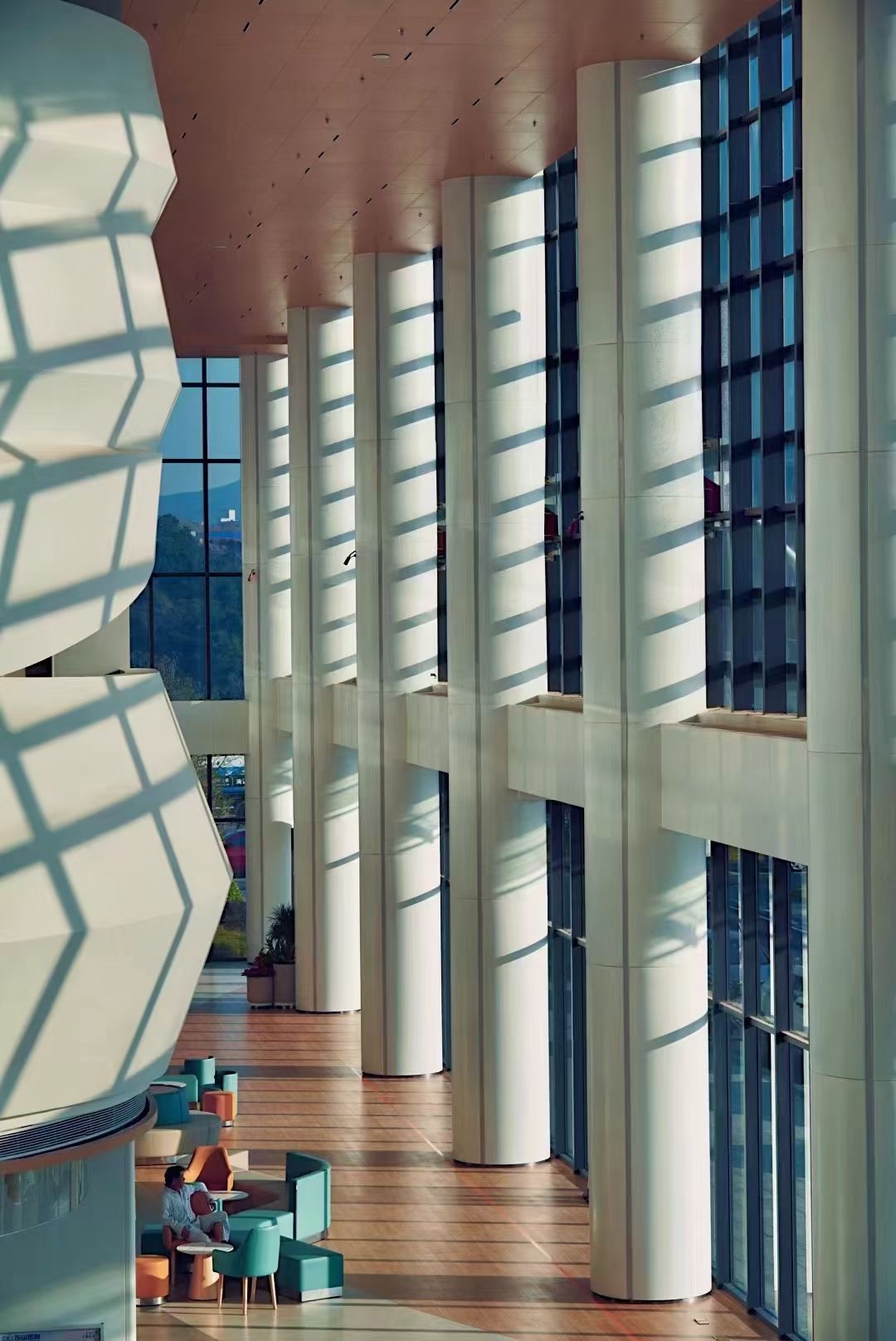

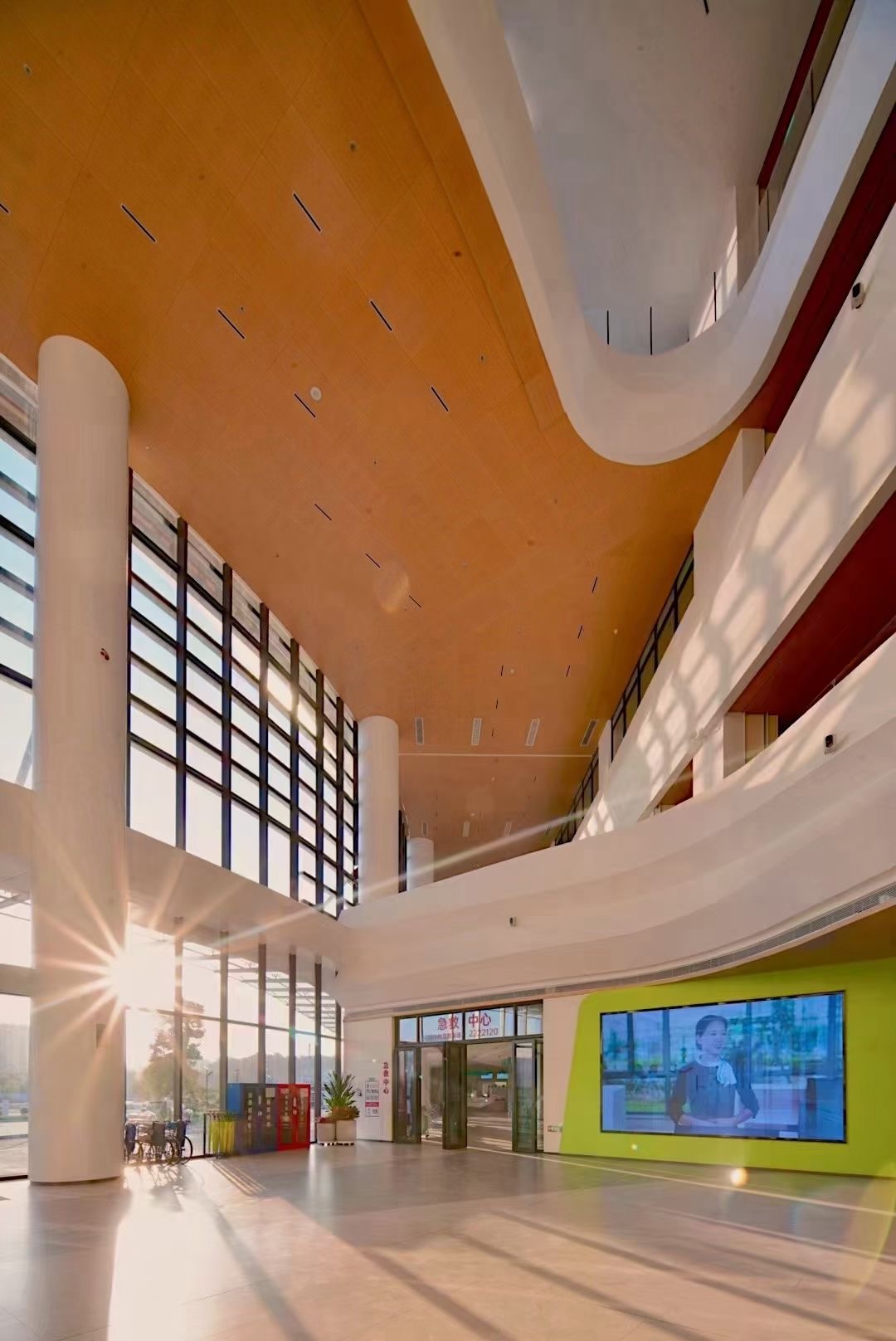

Product: Interior Ceiling Cassette Panels
Material: 0.9–1.2mm pre-lacquered aluminum (Bendable for curved ceilings)
Standard Sizes: 300x300mm, 600x600mm, or custom modular designs
Specialized Properties:
Hygienic Surfaces: Nano-coating technology for stain resistance and easy disinfection
Acoustic Performance: Micro-perforations (φ1.2–2.5mm) with sound-absorbing fleece backing (NRC 0.75)
Quick-Release Mechanisms: Tool-free access for maintenance of HVAC and medical utilities
Integrated Lighting: Pre-cut slots for LED panels or emergency lighting systems
Hospital-Specific Engineering Advantages
Infection Control: Non-porous surfaces with antimicrobial treatments to meet GB 15982-2012 hygiene standards.
Vibration Dampening: Reinforced framing systems to stabilize sensitive medical imaging equipment.
Chemical Resistance: Withstands frequent cleaning with alcohol-based disinfectants.
Fire Safety: Full compliance with GB 8624-2012 Class A2 non-combustible certification.
Technical Compliance:
All systems adhere to China’s GB/T 17748-2016 (Architectural Aluminum Composite Panels) and JGJ 49-2016 (Design Code for Healthcare Facilities), ensuring seamless integration with hospital infrastructure.
Custom Solutions:
Tailored designs for operating theaters, radiology shielding zones, and patient wards, including EMI/RFI shielding options and anti-static finishes.
Project Outcome:
Our solutions at Meizhou Dongshan Hospital create a healing-focused environment through clean lines, germ-resistant surfaces, and noise-controlled interiors, while maintaining rapid installability to minimize clinical workflow disruptions.
This description highlights technical rigor and healthcare-specific adaptations.
