The custom Aluminum ceiling is specifically designed for modern office, education, medical, and other diverse environments. Leveraging four core advantages—Acoustic Optimization + Aesthetic Customization + Functional Integration + Green Safety—it creates a quiet, efficient, visually harmonious, and sustainable high-quality spatial environment.
.
.
.
.
Acoustic Customization:
.
-

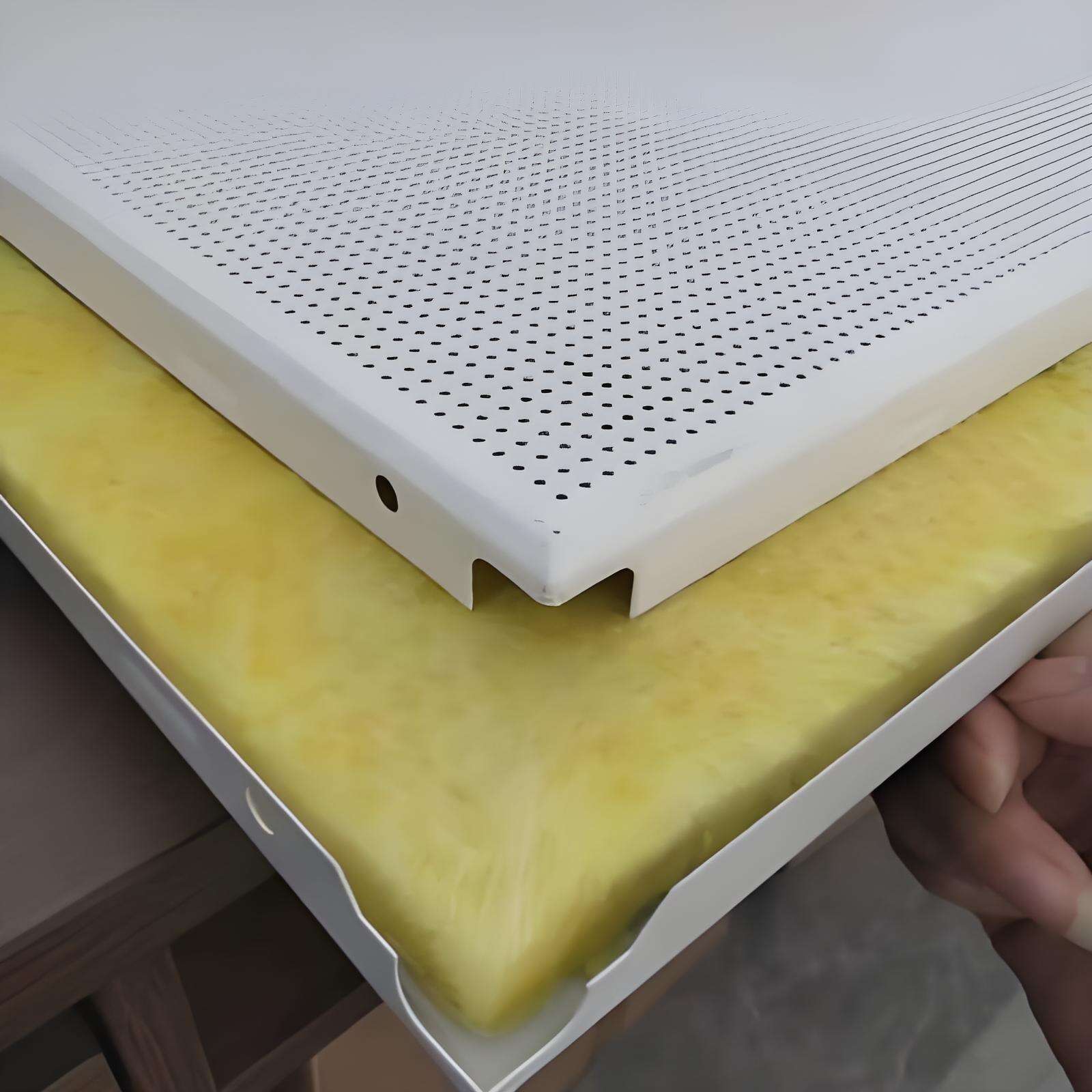

Professional Noise Reduction Design: Utilizes adjustable circular perforations (3%-30% perforation rate, φ1.5-3.0mm) combined with a high-density sound-absorbing cotton backing (mineral wool/PET cotton), achieving a dual mechanism of "perforation absorption + sound insulation absorption." Effectively reduces mid-to-low frequency noise such as conversations, keyboard typing, and equipment hum, significantly enhancing speech clarity
.
-
Scenario-Based Acoustic Solutions:
-
Conference Rooms: High sound absorption configuration (NRC ≥ 0.8) ensures clear speech without echo, with reverberation time precisely controlled between 0.6-0.8 seconds
-
Open Office Areas: Balanced design (NRC 0.6-0.7) controls ambient noise while allowing for appropriate conversational levels
-
Focus Work Areas: High sound insulation structure (STC ≥ 35) creates an ultra-quiet environment for deep concentration
.
.
Customizable Design:
-
Color Customization: Supports precise matching with RAL, Pantone standard color charts, and corporate VI colors, and offers various premium textures like wood grain and stone patterns
-
Pattern Customization: Beyond standard circular perforations, supports linear, wavy, gradient, and artistic layout perforations
-
Surface Finishes: Offers multiple high-end finishes including Powder Coating (scratch-resistant, long-lasting color), PET Film Lamination (fine texture, corrosion-resistant), and PVDF Coating (outdoor-grade weather resistance, color stability for over 10 years)
-
Integrated Design: Can integrate LED light strips to create unique "light and shadow matrices" through perforations. Features a modular, seamless splicing design for a clean, sophisticated look, and supports localized quick disassembly for easy maintenance
.
.
Light weight & High Strength:
-
Lightweight Structure: A single standard panel (0.6mm thickness) weighs only about 0.5kg, 40%-60% lighter than traditional gypsum board, significantly reducing structural load on buildings. Ideal for high-rise buildings and renovation projects
-
High-Strength Substrate: Made from high-quality aluminum alloys like AA3003, processed through hot extrusion and aging treatment, meeting visual and structural requirements for large-span, spacious areas
.
Performance advantages:

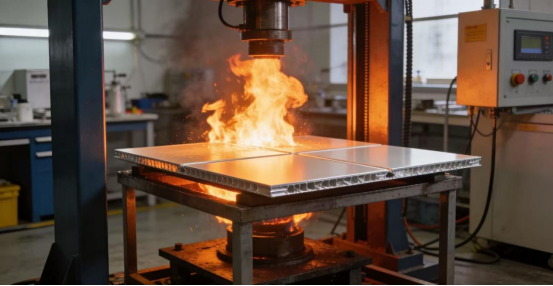

- Class A2 Fire Resistance: Does not emit toxic fumes at high temperatures, fully complying with various office building fire codes
- Moisture and Mold Resistance: The all-aluminum material is inherently non-absorbent and mold-resistant, perfectly suited for high-humidity climates or air-conditioned spaces prone to condensation
- Weather and Aging Resistance: Supports various surface treatments including polyester powder, PVDF fluorocarbon, and anodizing. PVDF coating offers excellent UV resistance, acid rain resistance, and salt spray resistance, ensuring overall weather resistance for over 10 years, even in coastal or industrially polluted areas
.
.
.
.
Application Scenarios:
.
✅Commercial Office Spaces:
-
Open-Plan Offices: Significantly reduces conversational noise interference, enhancing employee focus and productivity
-
Conference Rooms/Halls: Improves speech privacy and clarity, prevents echo, and ensures efficient meeting execution
-
Private Offices: Creates a quiet, private personal workspace and supports personalized aesthetic design
✅Public Institutions and Educational Spaces:
-
Schools/Training Centers: Creates a quiet learning environment, enhances spatial quality while reducing noise, and features easy-to-clean, stain-resistant coatings
-
Libraries/Archives: Offers excellent sound absorption and moisture resistance, protecting valuable documents and materials while fostering a tranquil atmosphere for reading and research
-
Medical Facilities: Meets the stringent hygiene and cleanliness requirements of hospitals and clinics. The Class A2 fire rating and easy-to-clean surface ensure comprehensive environmental safety
✅Commercial Retail and Public Spaces:
-
Shopping Malls/Specialty Stores: Large-format panels minimize seams for a cohesive visual look. The perforated design cleverly balances ventilation and acoustic needs, enhancing the shopping experience
-
Brand Flagship Stores: Supports custom high-end finishes like wood and stone patterns, reinforcing brand visual identity and significantly elevating the space's perceived quality
✅Transportation Hubs and Large Public Buildings:
-
Airports/High-Speed Rail Stations/Subway Stations: Meets the demanding requirements of large spans and high foot traffic. Combines outstanding sound absorption, noise reduction, and fire safety, ensuring spatial openness and acoustic comfort
-
Stadiums/Exhibition Centers: High strength and anti-deformation properties prevent sagging in large spaces. Perforated sound absorption effectively reduces noise interference from activities
.
.
.
Technical Specifications:
.
Item |
Parameter / Option |

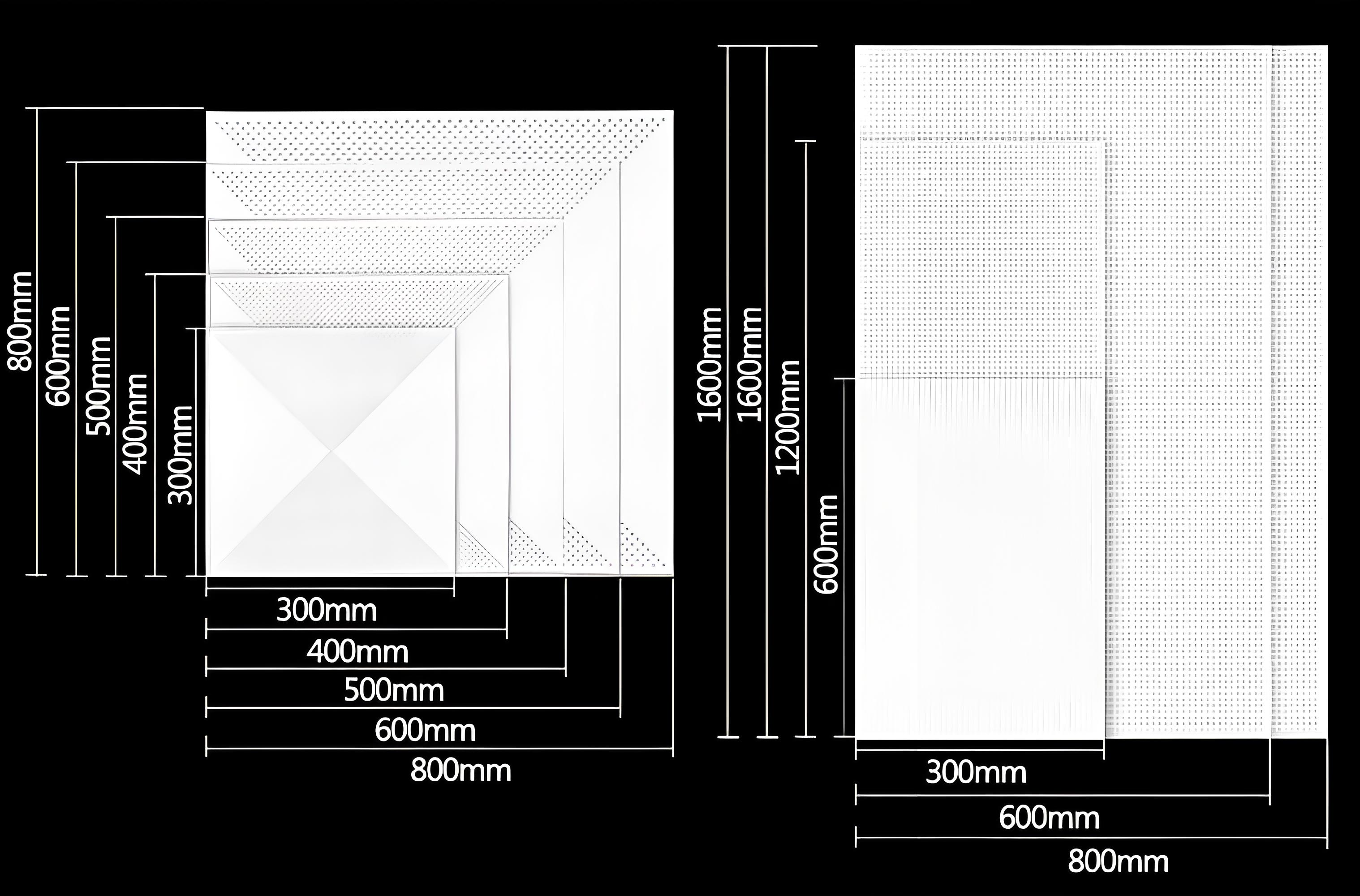

Dimensions |
600mm × 600mm; Custom non-standard sizes available (e.g., 300×1200mm, 600×1200mm) |
Thickness |
0.4mm-1.2mm; Other custom thicknesses supported |
Material |
High-Quality Aluminum Alloy (AA3003-H24 / AA5005-H14 or equivalent strength) |

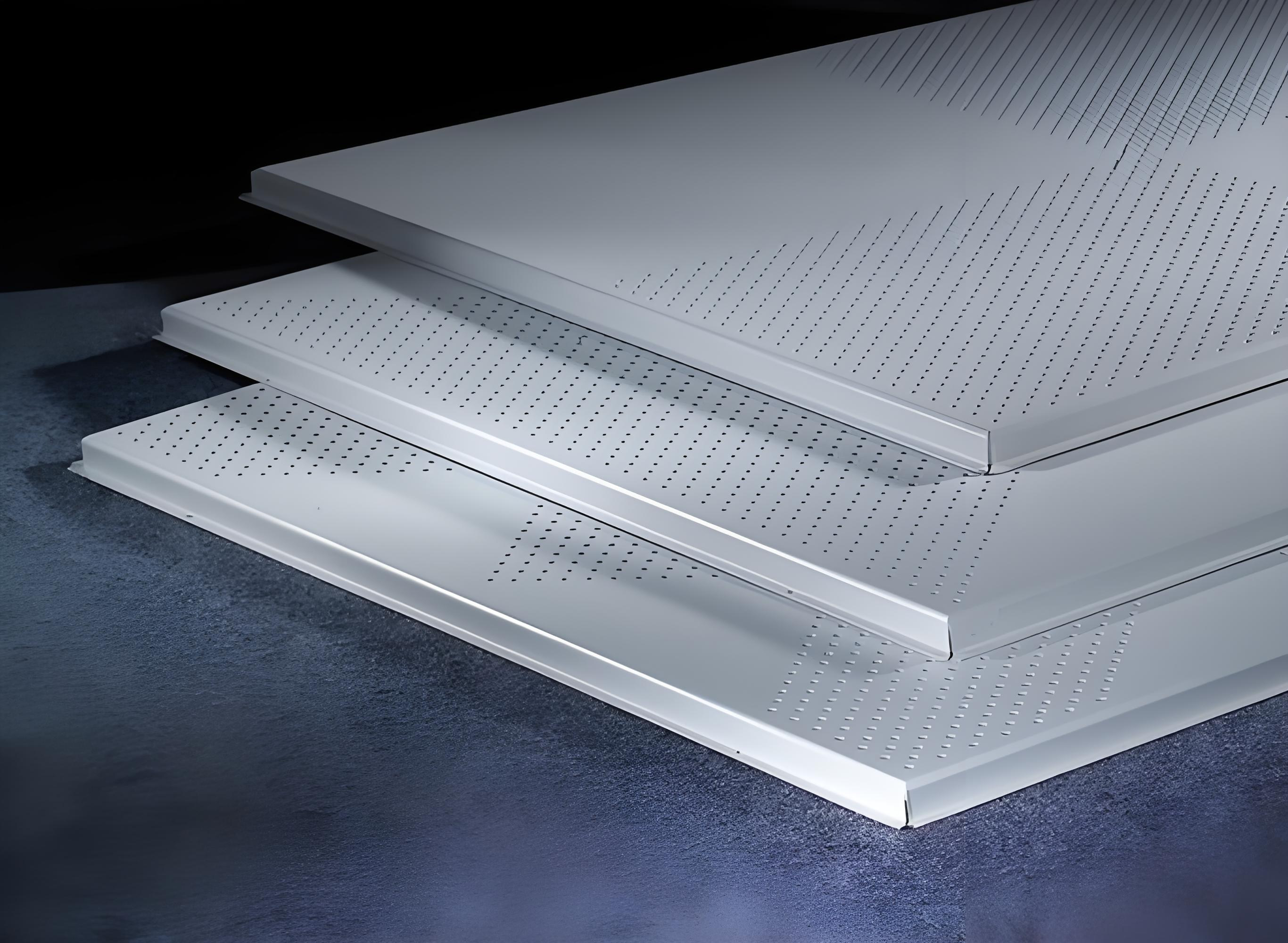

Perforation Type |
Circular perforations (φ1.5mm / 1.8mm / 2.3mm / 3.0mm optional); Custom hole patterns, spacing, and open area ratio supported |
Surface Finish |
Polyester Powder Coating, PVDF Fluorocarbon Coating, Anodizing, PE Film Lamination, Pre-coated Coil |
Color |
Standard Colors (White/Gray/Black); Full-range customization including wood/stone grains and corporate VI colors |
Fire Rating |
Class A2 Non-combustible |
Sound Insulation Rating |
STC ≥ 30 (Can reach STC ≥ 35 with thickened soundproof backing) |
Installation Method |
Simple Snap-in Design (Dry-hung grid system, tool-free, quick installation, minimal site disruption) |
.
.
.
.
Installation Guide:
-
Preparation: Ensure the mounting grid system in the installation area is clean, dry, and perfectly level
-
Product Selection: Choose the appropriate panel thickness (0.4mm/0.6mm/0.8mm) based on design load and sound insulation requirements
-
Snap-in Installation: Align the ceiling panel precisely with the slot in the hanging grid. Press firmly to lock it in place—no tools required
-
Leveling and Finishing: Make fine adjustments to the panel alignment to ensure uniform, straight seams, achieving a flawless seamless appearance
.
.
Service and Support:
-
Free Samples: Provide material swatches, color charts, and perforation samples for your physical testing and confirmation
-
Rapid Quotation: Deliver detailed custom proposals and accurate quotations within 24 hours of receiving your request
-
Efficient Delivery: Standard stock items ship in 5-10 days; Custom production lead time is 15-30 days
-
Complete Logistics: Offer full order tracking. Ensure timely and secure delivery
-
Professional After-Sales: Provide installation guidance, cleaning and maintenance tips, and lifetime technical consulting services
.
.
.
.
Packaging and Delivery:
-
Professional Packaging: Each ceiling panel is individually packaged with eco-friendly materials, featuring inner moisture-proof PE film and outer high-strength corrugated cartons or export-standard wooden crates to ensure zero damage during transit
-
Flexible Delivery: Supports domestic FTL/LTL transportation and international sea/air freight, offering door-to-door logistics solutions
.
